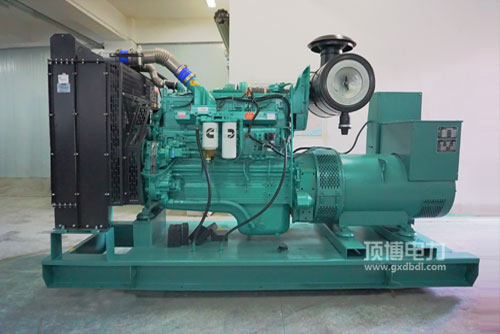

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用起驱力然油划算性好: 最新的然油控住体统，独具的STC、ESTC 等级分类控住体统，层次性设计的的柱塞上边进行发动机燃烧物室，直流高压喷洒然油，更加有效充分的雾化吸入，进行燃烧物更加有效充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用启心理瞬态性能方面比较好: 很好的的启心理整体结构设计制作，合作康明斯与众不同的EFC系统，设定导致精度大，反映时候快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用汽车发心理升额定功率高: 大体规划宽敞.外观现场布置科学合理，运营保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50足够中国现代非道路上第三步关键时期及美洲Tier2. Tier 3的排放规范特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件必须性好， 发起机正常运作及维系保養便利店加盟，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率使用范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状宽度 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电量用热车机的特质：比热容小， 缩短变高， 排水槽环境加水，最易运行，移動车载影音交流电源的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发驱动力应用	适用工作功率(kW)Prime Power	备品电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
